| Model |

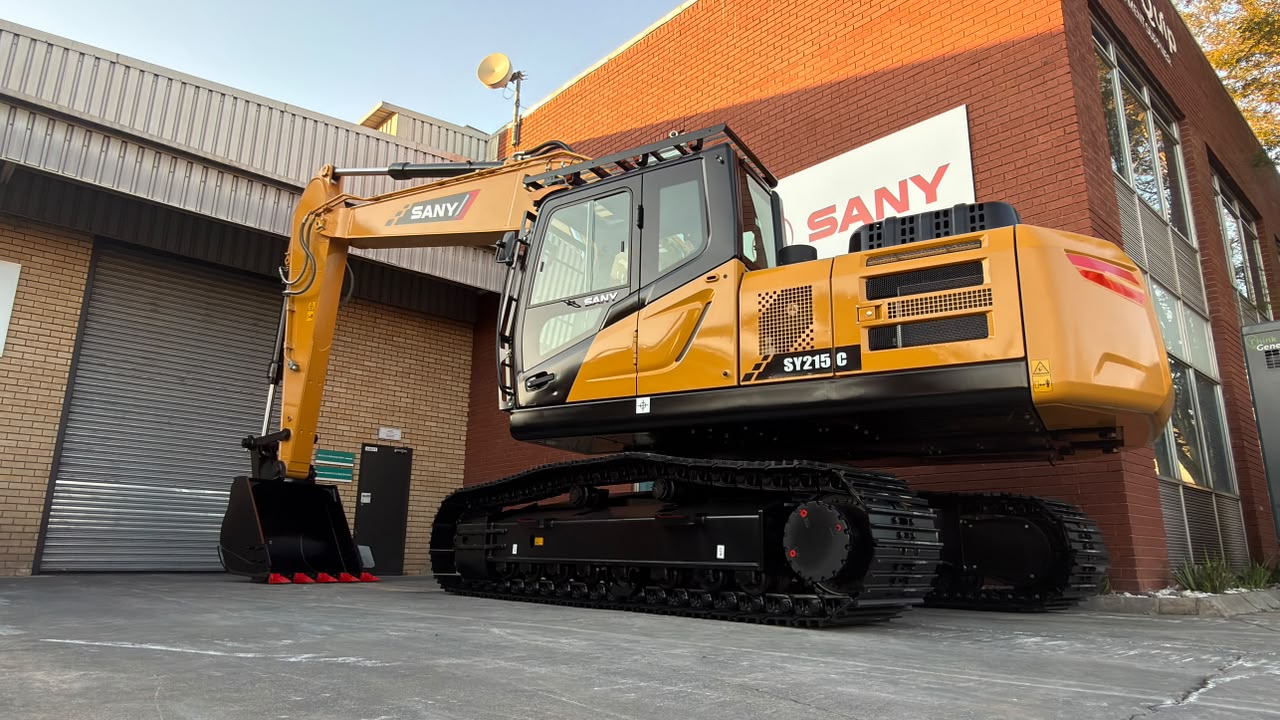

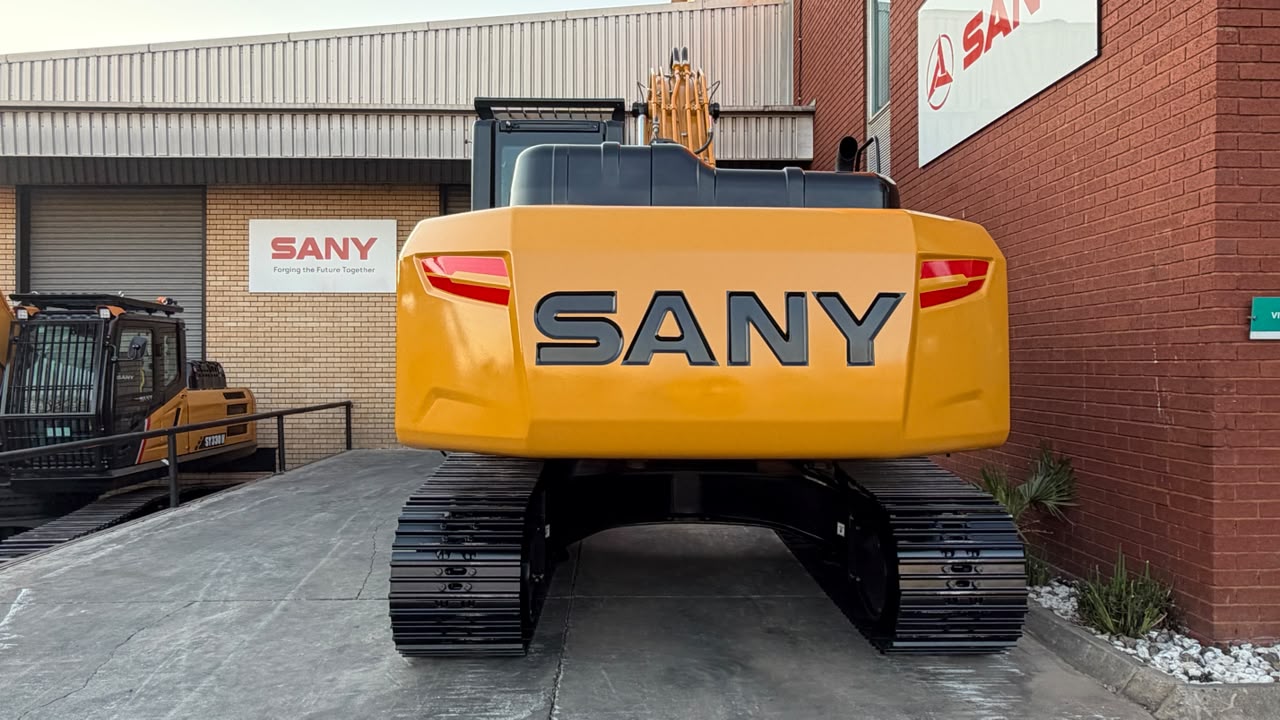

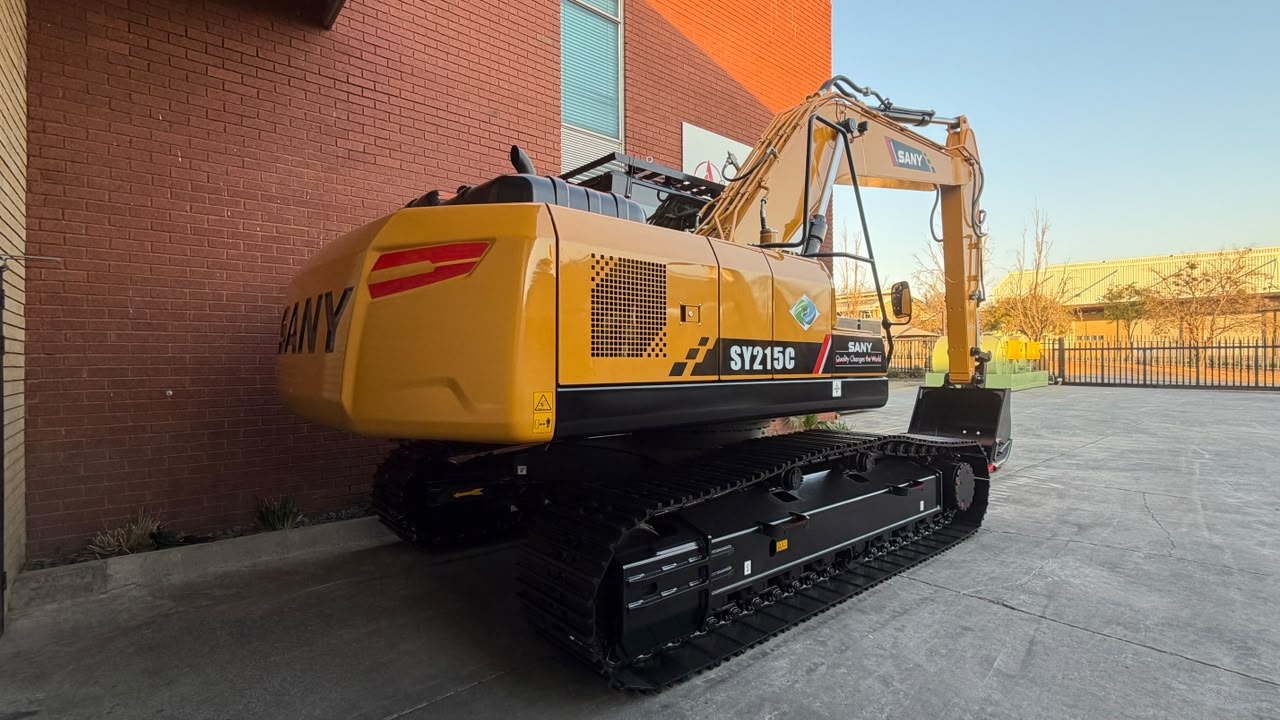

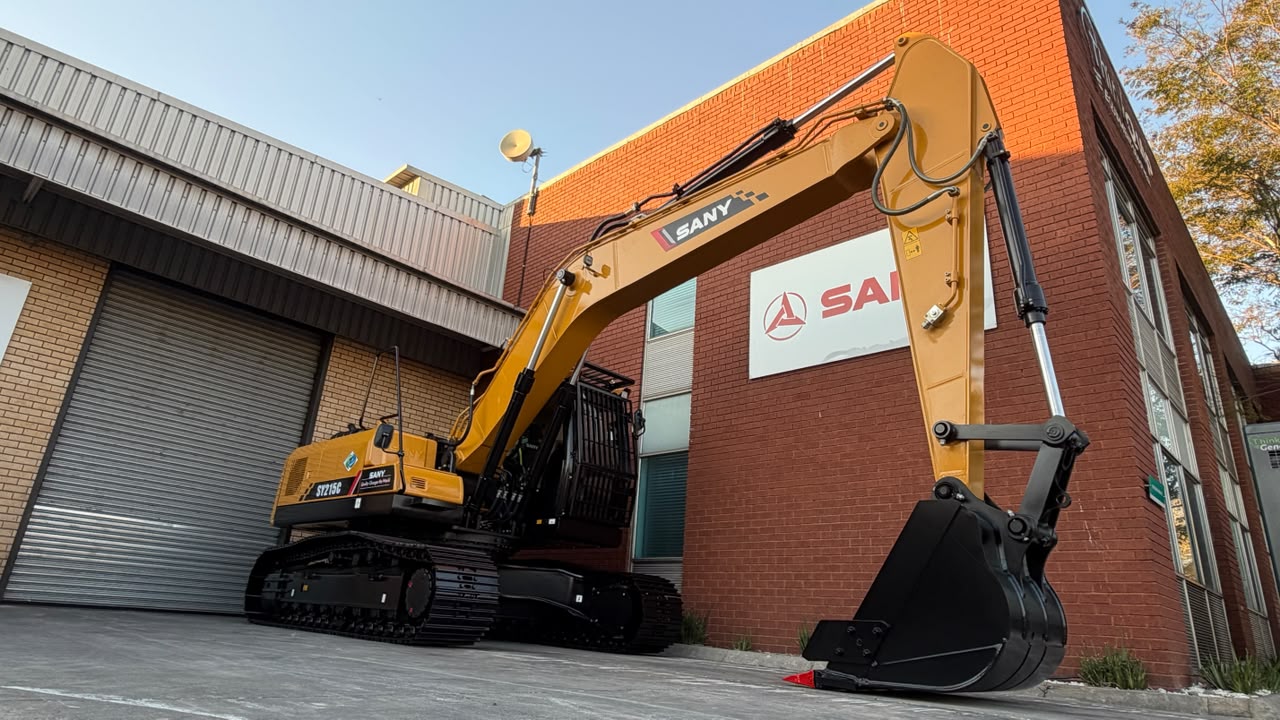

SY215C Excavator |
| Operating Weight |
21,900 kg |

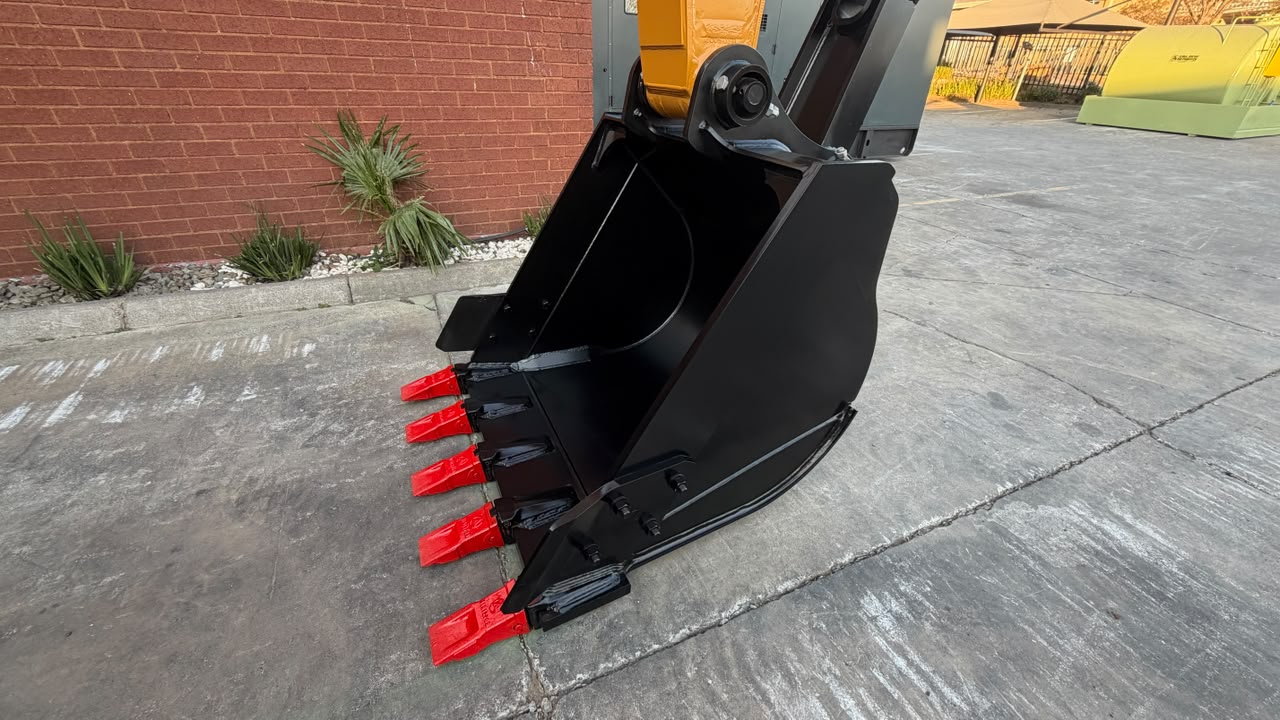

| Bucket Capacity |
0.93 m³ |
| Engine |
SANY 4M50 Diesel Engine |
| Engine Power |
118 kW |
| Application |
Construction, Earthmoving, Civil Engineering, Mining, Quarrying and Infrastructure Projects |
| Hydraulic System |
Positive Flow Hydraulic System |
| Telematics |
TECTRA Telematics Monitoring System |
| Engine Model |
SANY 4M50 |
| Engine Type |
4-Cylinder Turbocharged Diesel |
| Engine Power |
118 kW |
| Engine Displacement |
4.9 L |
| Electronic Engine Management |
Yes |
| Fuel Efficient Design |
Yes |
| Automatic Idle Function |
Yes |
| Heavy Duty Air Filtration System |
Yes |
| Hydraulic Control |
Advanced Positive Flow Hydraulic Control |
| Pilot Controlled Hydraulic System |
Yes |
| Main Pumps |
High Efficiency Main Pumps |
| Automatic Power Boost Function |
Yes |
| Multi-Function Operation |
Smooth Operation |
| Cycle Times |
Fast Cycle Times |
| Fuel Consumption |
Optimised Fuel Consumption |
| Operating Weight |
21.9 t |
| Bucket Digging Force |
138 kN |
| Arm Digging Force |
103 kN |
| Maximum Digging Depth |
6,255 mm |
| Maximum Reach at Ground Level |
9,600 mm |
| Maximum Dumping Height |
6,730 mm |
| Maximum Digging Height |
9,600 mm |
| Swing Speed |
11 rpm |
| Travel Speed |
3.5 / 5.4 km/h |
| Gradeability |
70% (35°) |
| Track Frame |
Heavy Duty |
| Track Shoe Width |
600 mm |
| Carrier Rollers Per Side |
2 |
| Track Rollers Per Side |
8 |
| Track Components |
High Strength |
| Stability Design |
Enhanced |
| Fuel Tank |
340 L |
| Hydraulic Tank |
239 L |
| Engine Oil Capacity |
20 L |
| Cooling System |
29 L |
| Final Drive Oil |
2 × 5 L |
| Cab |
ROPS/FOPS Certified Cabin |
| Air Conditioning & Heating |
Included |

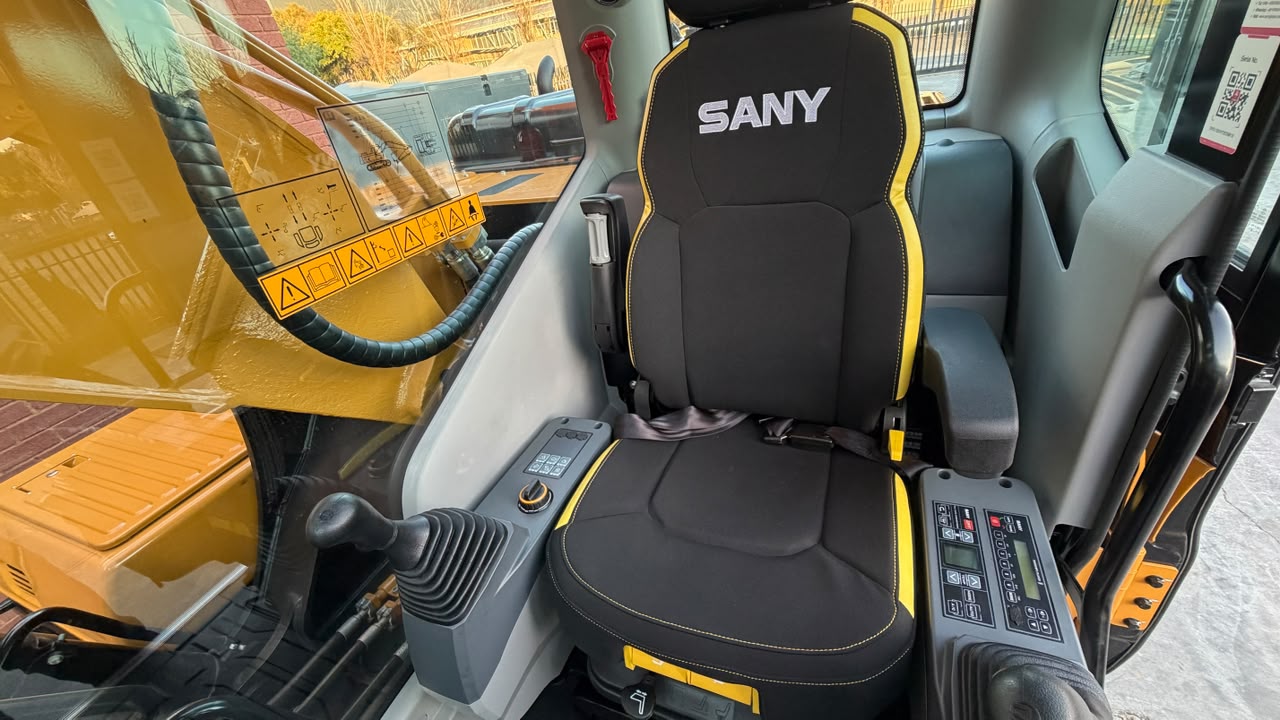

| Seat |
Adjustable Suspension |
| Display |
LCD Colour Display |
| Rear View Camera |
Included |
| Controls |
Ergonomic Joystick Controls |
| Bluetooth & Radio |
Ready |
| Visibility |
Excellent All-Round Visibility |
| Operator Environment |
Low Noise |
| Telematics System |
TECTRA Telematics Monitoring System |
| Machine Tracking |
Real-Time |
| Fuel Consumption Monitoring |
Included |
| Service & Maintenance Alerts |
Included |
| Machine Utilisation Reports |
Included |
| Overall Length |
9,680 mm |
| Overall Width |
2,980 mm |
| Overall Height |
3,440 mm |
| Track Gauge |
2,380 mm |
| Ground Clearance |
470 mm |
| Tail Swing Radius |
2,920 mm |
| Track Length on Ground |
3,640 mm |
| Standard Boom Length |
5,700 mm |
| Standard Arm Length |
2,900 mm |
| Hydraulic Quick-Coupler Piping |
Included |
| Auto Idle Function |
Included |
| Heavy Duty Boom and Arm |
Included |
| Work Lights |
Included |
| Battery Isolation Switch |
Included |
| Rear View Camera |
Included |
| Travel Alarm |
Included |
| Tool Kit |
Included |
| Integrated Monitoring System |
Included |
| Complete Machine |
3,000 Hours / 24 Months |
| Telematics System |
TECTRA Monitoring Included |
