| Model |

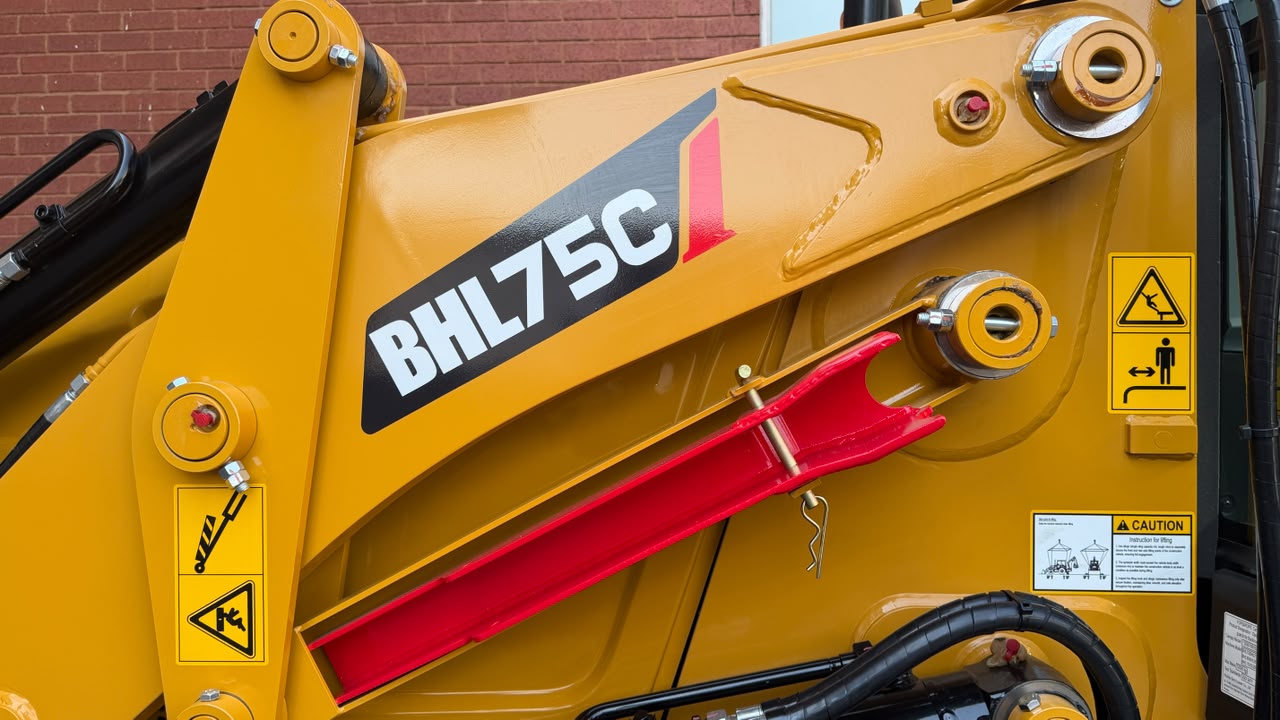

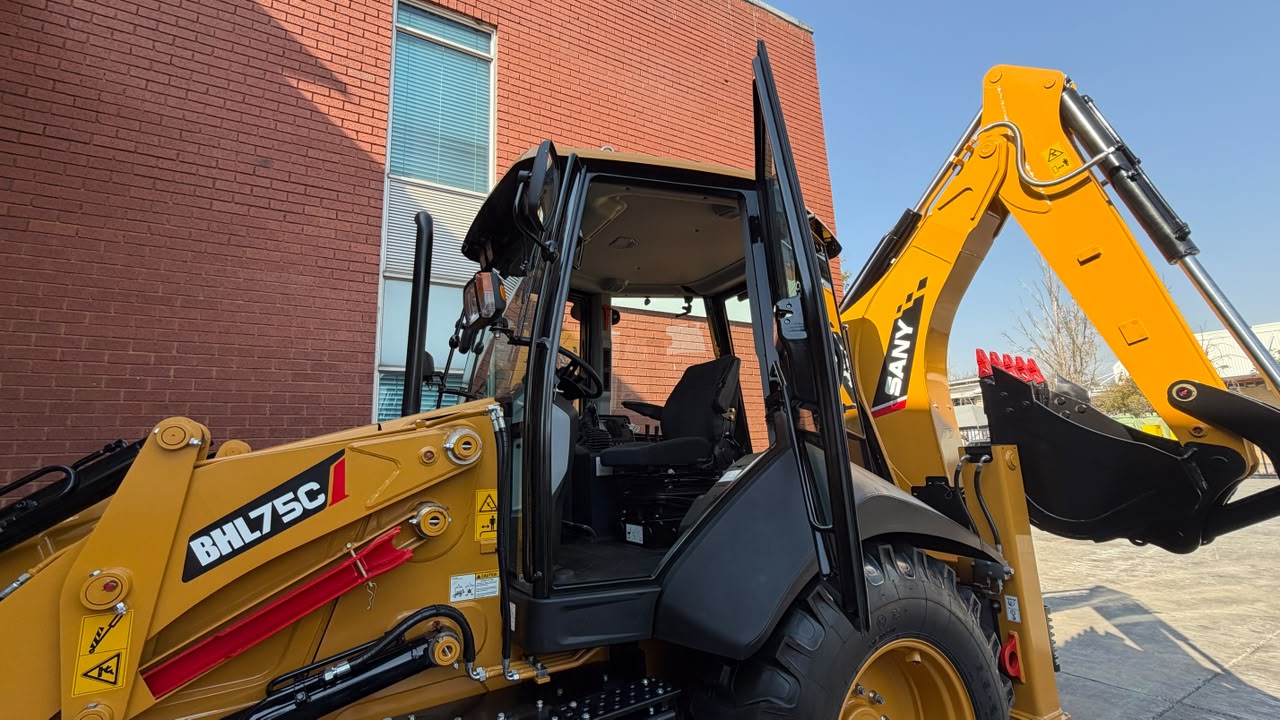

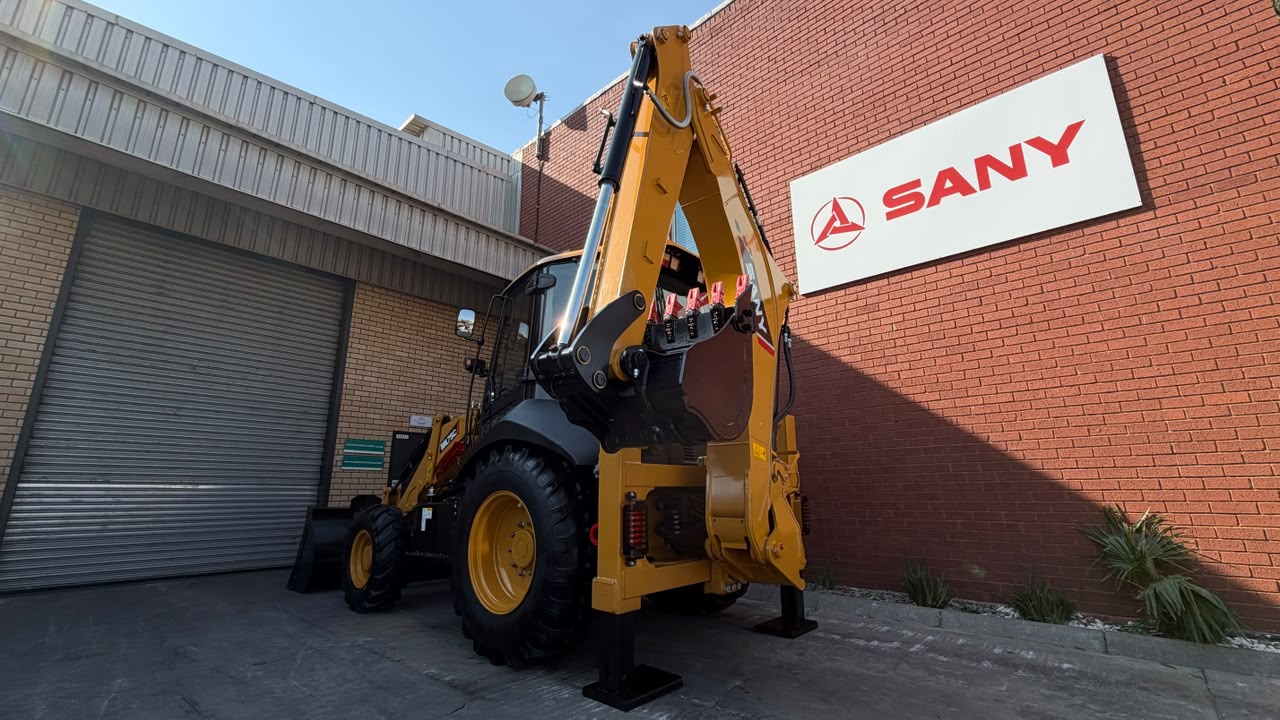

SANY TLB BHL75C |
| Operating Weight |
7,650 kg |
| Loader Bucket Capacity |
1.0 m³ |
| Backhoe Bucket Capacity |
0.25 m³ |
| Engine |
Cummins QSF 3.8 Diesel Engine |
| Engine Power |
74 kW (99 hp) |
| Drive Type |
4WD Powershift Transmission |
| Engine Manufacturer |
Cummins |
| Engine Model |
QSF 3.8 |
| Engine Type |
Turbocharged, Water-Cooled |
| Engine Displacement |
3.76 L |
| Maximum Power |
74 kW @ 2,200 rpm |
| Maximum Torque |
420 Nm @ 1,600 rpm |
| Electronic Engine Management |
Included |
| Heavy Duty Air Filtration |
Included |
| Hydraulic System |
Load Sensing Hydraulic System |
| Controls |
Pilot Operated Controls |
| Main Pump Flow |
156 L/min |
| Operation |
Smooth and Responsive |
| Hydraulic Capability |
Multi-Function |
| Fuel Efficiency |
Optimised |
| Transmission |
4-Speed Powershift |
| Drive |
Four Wheel Drive (4WD) |
| Differential |
Limited Slip Differential |
| Maximum Travel Speed |
35 km/h |
| Service Braking System |
Electronically Controlled |
| Parking Brake |
Automatic Function |
| Operating Weight |
7,650 kg |
| Maximum Digging Depth |
4,332 mm |
| Maximum Digging Reach |
5,671 mm |
| Maximum Digging Height |
5,370 mm |
| Maximum Dumping Height (Backhoe) |
3,560 mm |
| Arm Digging Force |
32 kN |
| Loader Dump Height |
2,700 mm |
| Loader Dump Reach |
770 mm |

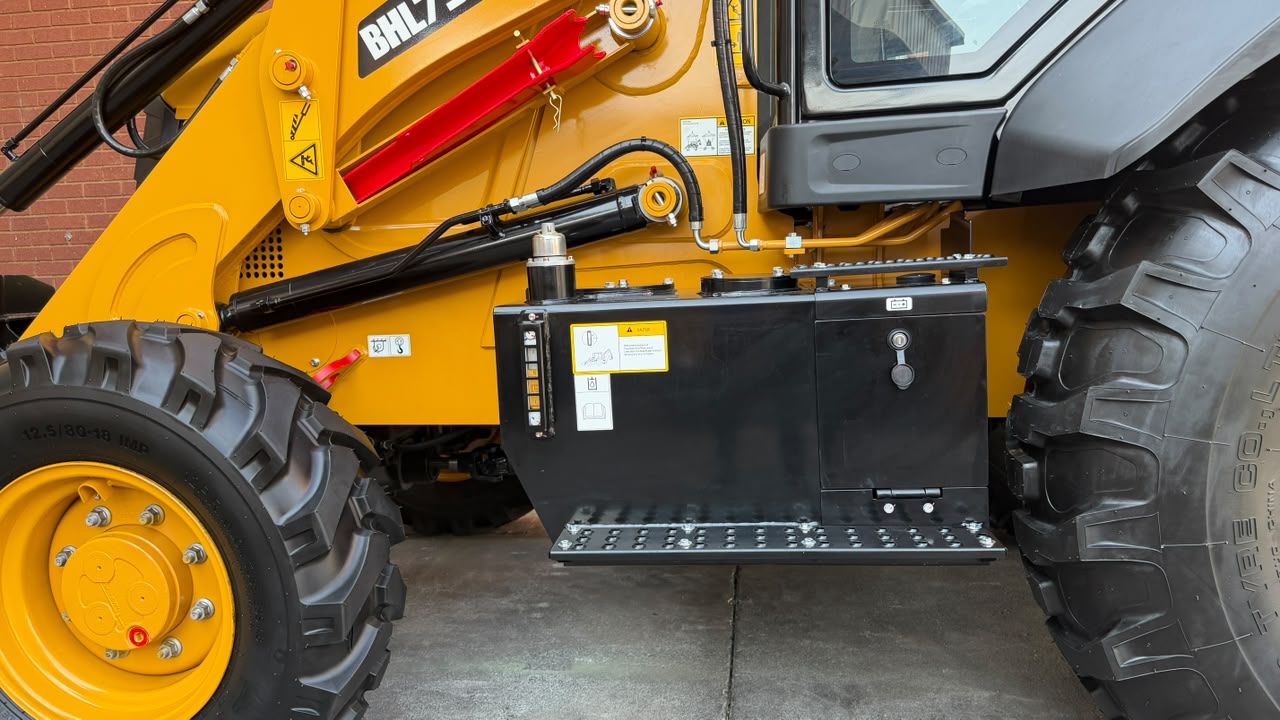

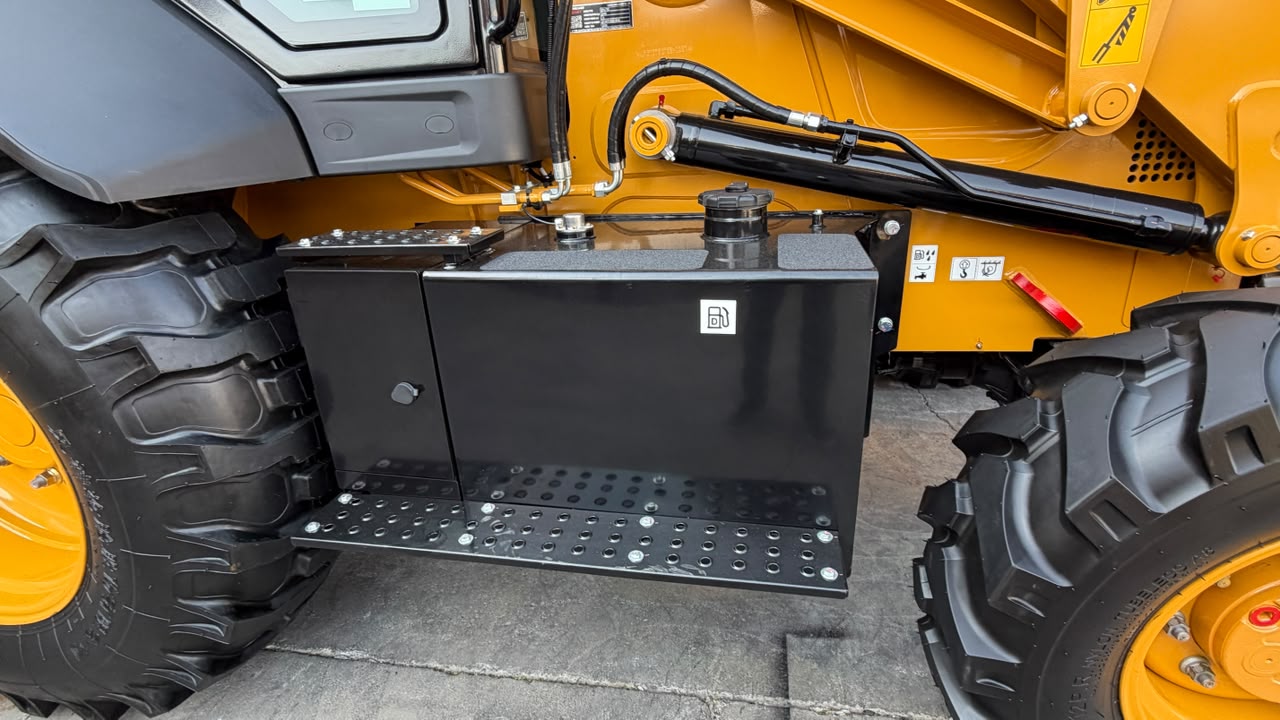

| Fuel Tank |
140 L |
| Hydraulic Tank |
120 L |
| Cooling System |
20 L |
| Engine Oil Capacity |
8.5 L |
| Transmission Oil |
18 L |

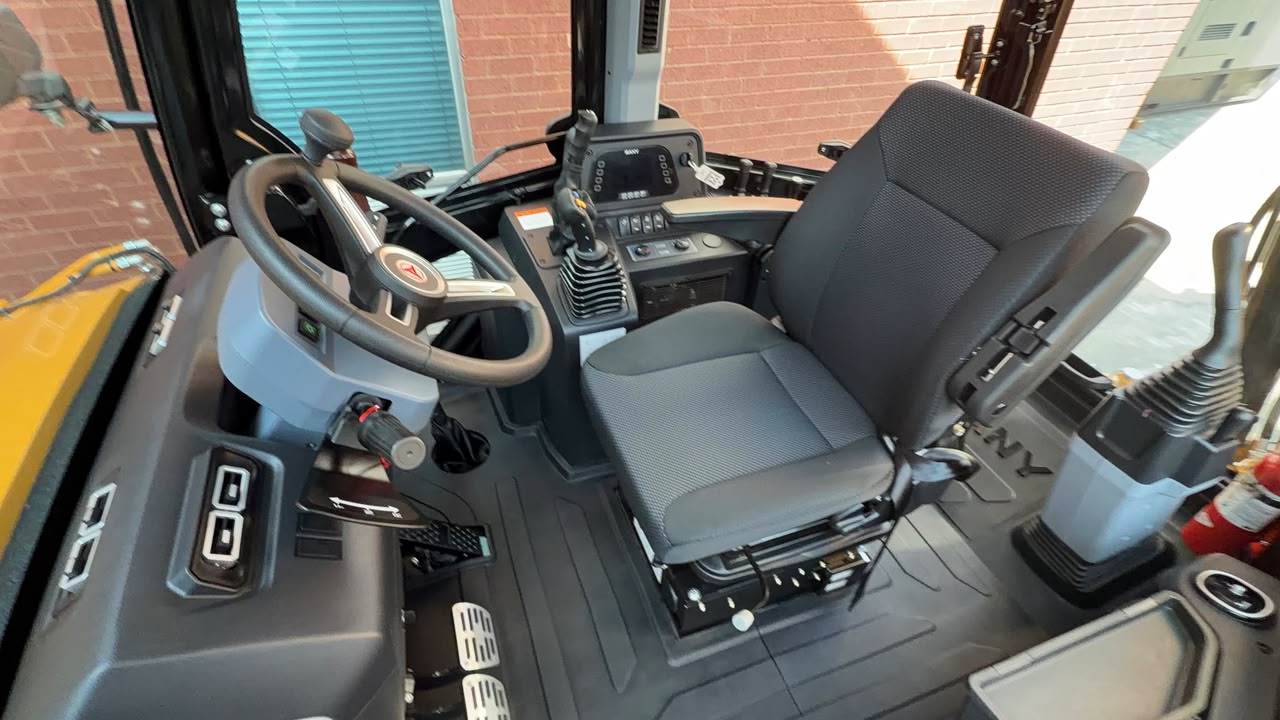

| Cab |
ROPS/FOPS Certified |
| Air Conditioning |
Included |
| Seat |
Adjustable Suspension |
| Controls |
Ergonomic Pilot Controls |
| Visibility |
Excellent Visibility Design |
| Instrument Display |
Digital |
| Control System |
Low Effort |
| Operator Environment |
Spacious |
| Transmission |
4WD Powershift |
| Pilot Hydraulic Controls |
Included |

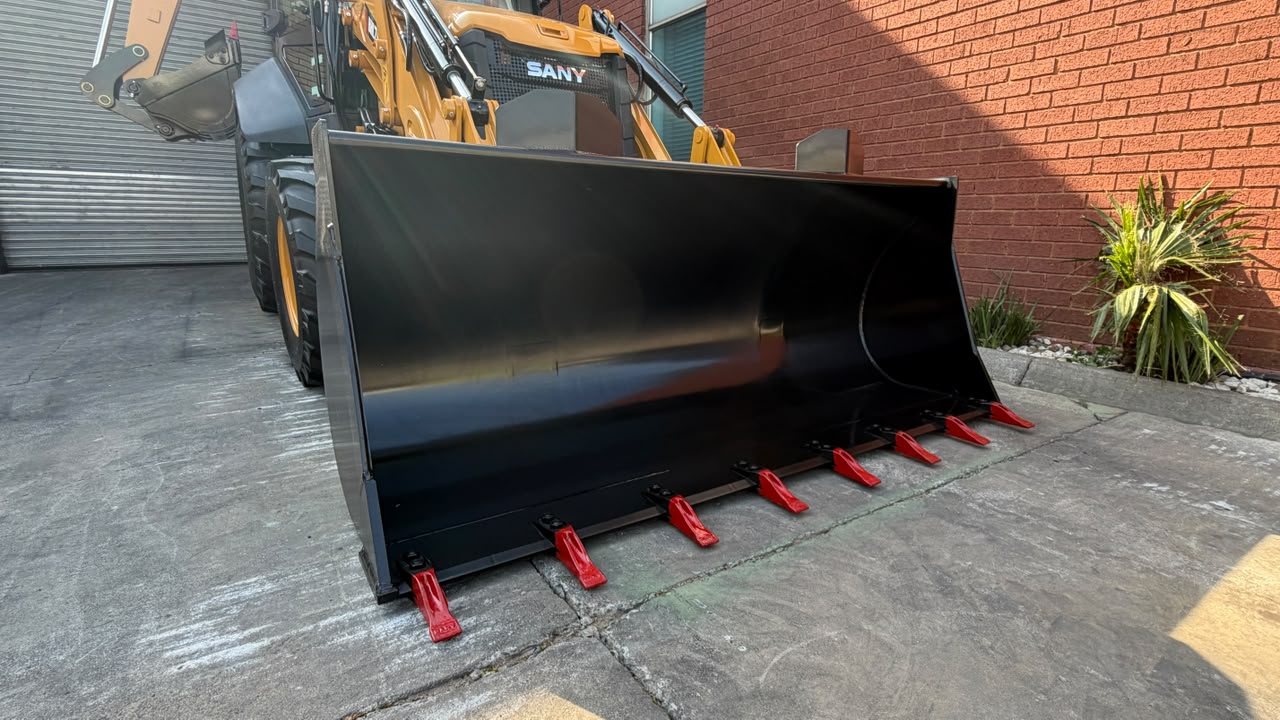

| Front Loader Bucket |
Included |
| Rear Excavator Bucket |
Included |
| Ride Control System |
Included |
| Work Lights |
Included |
| Battery Isolator |
Included |
| Travel Alarm |
Included |
| Tool Kit |
Included |
| Overall Length |
7,381 mm |
| Overall Width |
2,280 mm |
| Transport Height |
3,732 mm |
| Cab Height |
3,129 mm |
| Ground Clearance |
356 mm |
| Wheelbase |
2,245 mm |
| Front Track Width |
1,775 mm |
| Rear Track Width |
1,780 mm |
| Complete Machine |
3,000 Hours / 24 Months |
